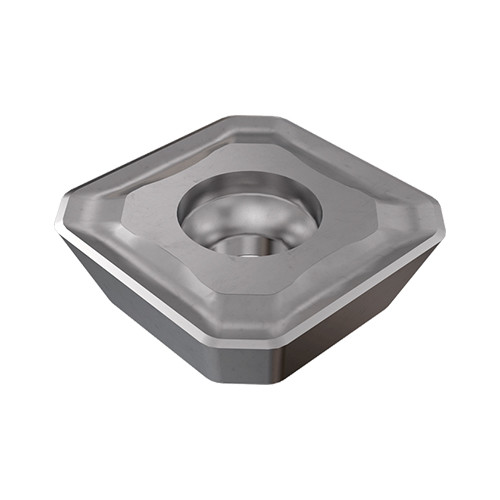

SEKT 12T3AFTN IC328
Milling Insert; SEKT12T3AFTN IC328 IC328 × 0.146″ Thickness ; Carbide ; TiCN

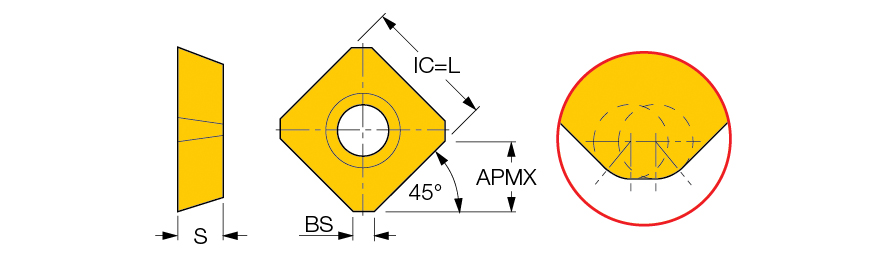

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.518″ | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.518″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.146″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.086″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Product Features
| Family Description | Square screw-clampes inserts for medium machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
