ADMT 1503PDR-HM IC328

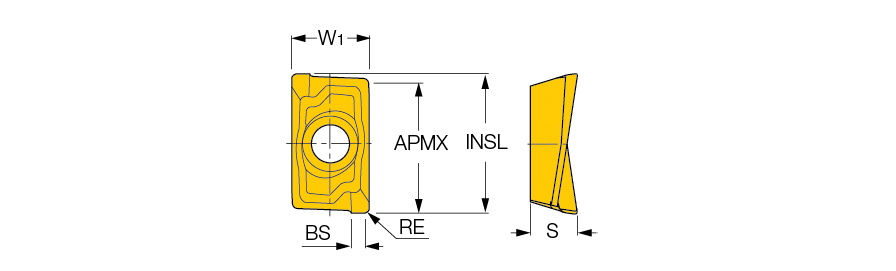

Milling Insert; 0.591″ Length × 3/8″ Width × 0.15″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC328 |
| Application | | Counter Boring | Countersinking | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Insert Length (INSL) | 0.591″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 3/8″ | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 0.15″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | HELIMILL general use milling insert | Country of Origin | Israel |
Shipping Info
Package Length
.60000
Package Width
.37000
Package Height
.14000
Package Weight
0.013
