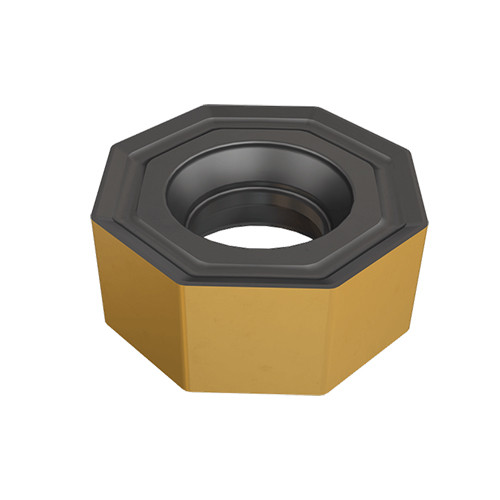

ONMU 050505-TN IC5100
Milling Insert; ONMU050505TN IC5100 IC5100 × 0.2″ Thickness ; Carbide ; TiCN+Al2O3
| Applicable Material | | Cast Iron | | Grade | IC5100 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

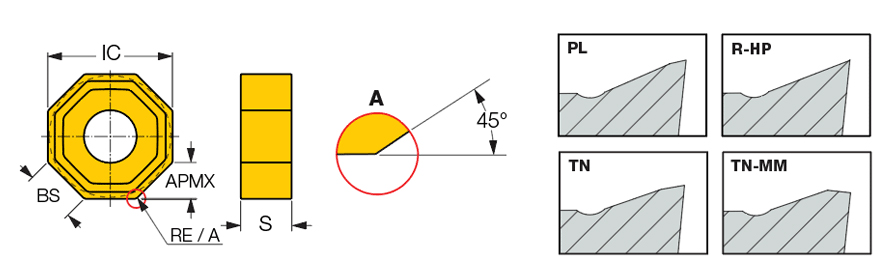

| Corner Radius (RE) | 0.0197″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.138″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.2″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Wiper Edge Length (BS) | 0.197″ | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
Product Features
| Family Description | Octagonal double-sided inserts with 16 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | ONHU - Precision ground ONMU - Utility |
Shipping Info
Package Weight
0.019
