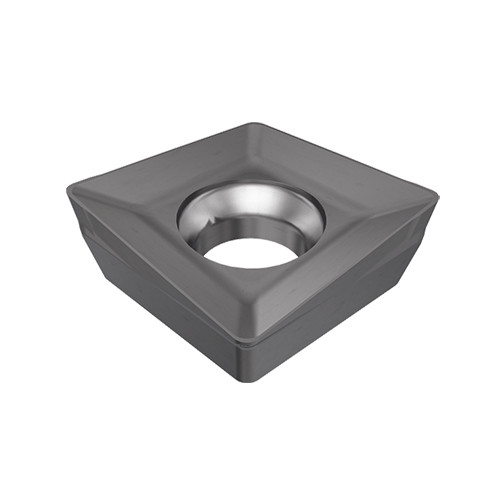

XOMT 060204T-HQ IC30N
Milling Insert; XOMT060204T-HQ IC30N IC30N × 0.101″ Thickness ; Cermet ; Uncoated
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Shape | Special |
| Application | | Bottom Shouldering | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Drill Mill | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

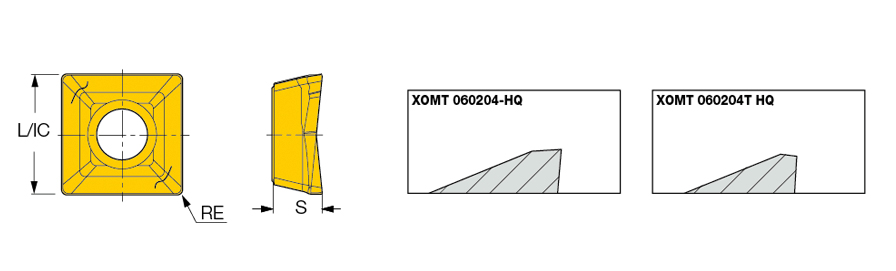

| Insert Length (INSL) | 0.243″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Cermet |
| Inscribed Circle Diameter (IC) | 0.243″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.101″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC30N | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD square inserts for milling, drilling and boring, with 2 right- and 2 left-hand cutting edges for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
