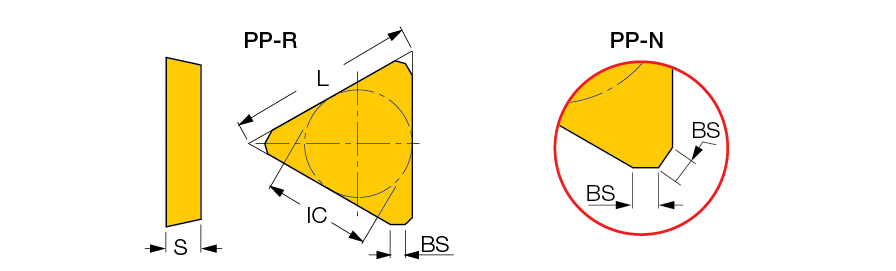

TPK 43PDTR
Milling Insert; 0.866″ Length × 0.187″ Thickness ; IC250 ; Carbide ; TiCN|TiN
| Applicable Material | Steel|Stainless Steel | Grade | IC250 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | Triangle |
| Cutting Edge Length (L) | 0.866″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Wiper Edge Length (BS) | 0.057″ | Measurement Type | Metric |
| Coating | TiCN|TiN | Body Material | Carbide |
Product Features
| Family Description | General use milling inserts. The -42 design has an improved tool life. The -HS has a serrated cutting edge for chip splitting and reduced chatter, the–76 has ribs along the cutting edge for reduced heat transfer in heavy machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.027
