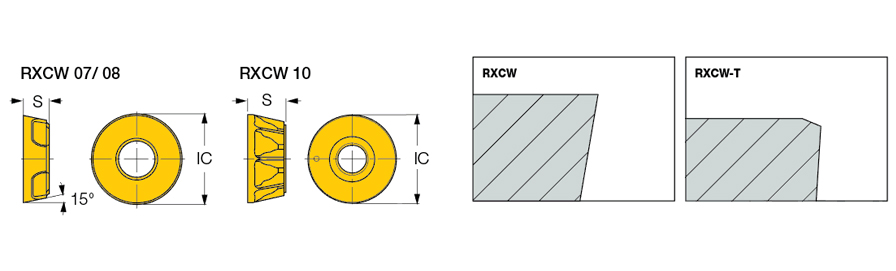

RXCW 10T3
| Applicable Material | Steel|Cast Iron | Shape | Round |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0098 inch/tooth |
| Corner Radius (RE) | 7.94 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.394″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.156″ | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
| Coating | TiCN | Measurement Type | Metric |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | Precision ground flat rake, round milling inserts with a star-shaped bottom for indexing and preventing insert rotation. Recommended for short chipping materials. | Country of Origin | IL |
Shipping Info
Package Weight
.0070
