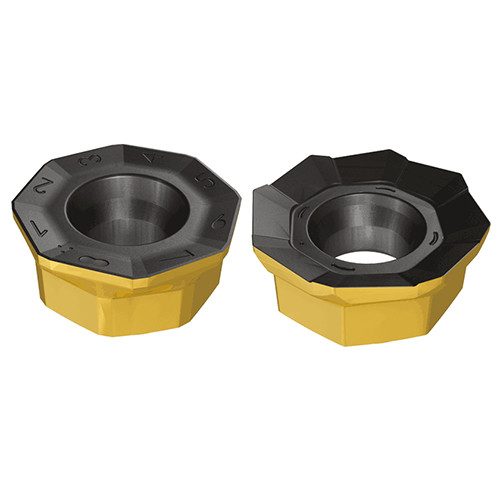

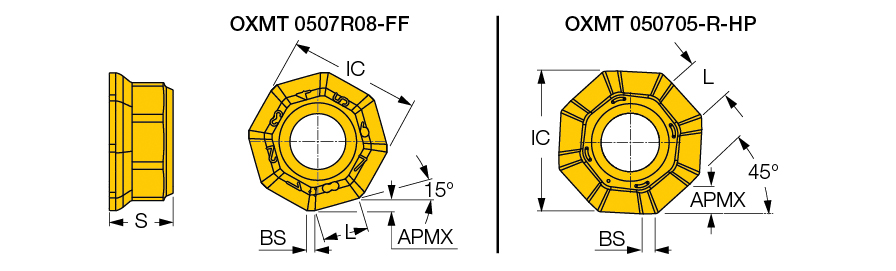

OXMT 050705-R-HP IC830
Milling Insert; OXMT050705RHP IC830 IC830 × 0.276″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | 135° Octagon |
| Application | | Facing | | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.169″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.106″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.594″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.276″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.049″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 |
Product Features
| Family Description | Octagonal milling inserts. One with FEEDMILL cutting edges, used at very high feed and low depths of cut and one with 45° edges. | Country of Origin | Israel |
| Remarks | To be used without a seat. |
Shipping Info
Package Weight
0.022
