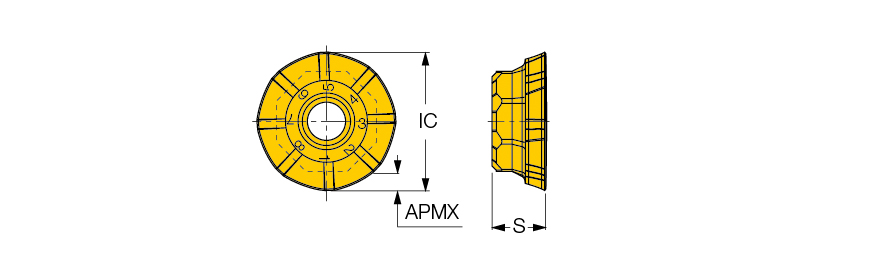

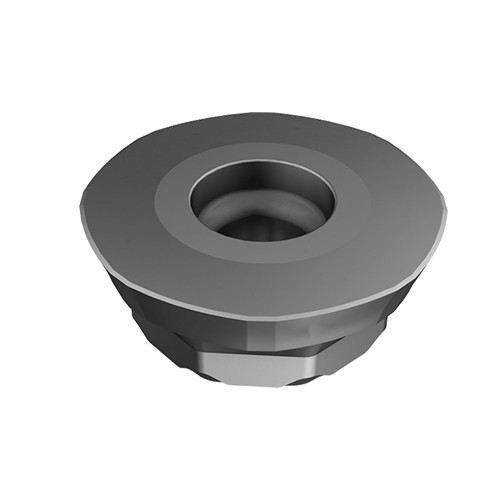

OFMW 0706R10-FF IC908
Milling Insert; OFMW0706R10FF IC908 IC908 × 0.315″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 135° Octagon |
| Application | | Facing | Fast Feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Insert Length (INSL) | 0.276″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.087″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.803″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Thickness (S) | 0.315″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | Milling inserts with 8 FEEDMILL large radii segmented cutting edges used on HELIOCTO cutters. Used at very fast feed - up to .118 in/tooth at low depths of cut - .02 in. First choice for fast metal removal in face milling. | Country of Origin | Israel |
| Remarks | To be used without a seat. |
Shipping Info
Package Length
.75000
Package Width
.75000
Package Height
.37500
Package Weight
0.056
