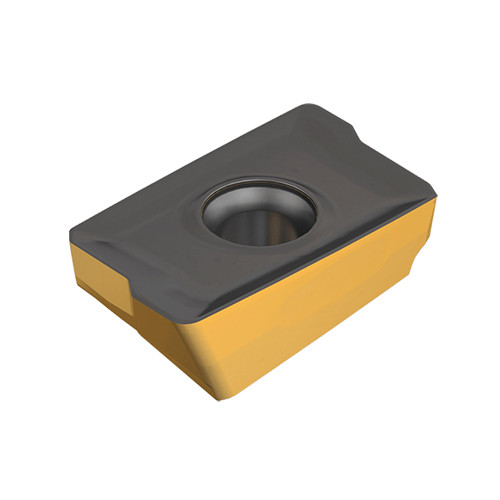

3M AXKT 2006PDTR-RM IC328
Milling Insert; 0.882″ Length × 0.531″ Width × 0.268″ Thickness ; IC328 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Counter Boring | Facing | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | 85° Parallelogram |

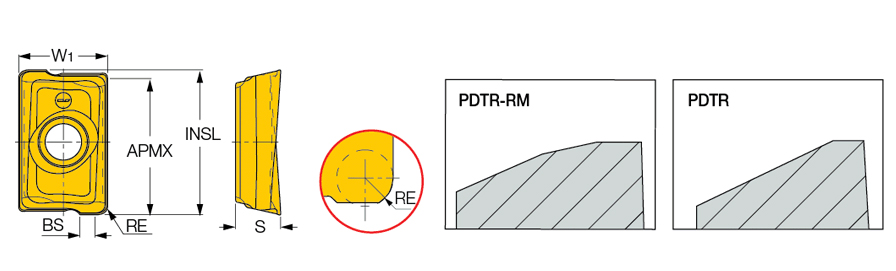

| Cutting Edge Length (L) | 0.882″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Insert Length (INSL) | 0.882″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0394″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.787″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.531″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.268″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.131″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | MILL2000 Heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life. |
