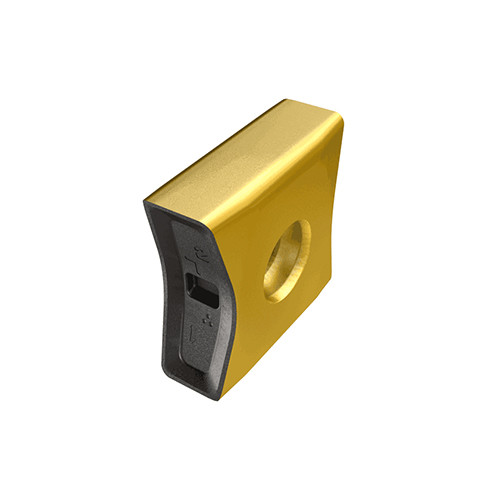

LNAT 150640-TN-PM IC830
Milling Insert; LNAT150640TNPM IC830 IC830 × 0.236″ Width × 0.602″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

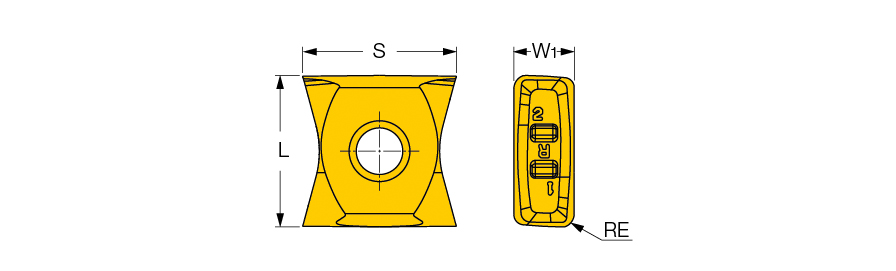

| Insert Length (INSL) | 0.591″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.1575″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.236″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.602″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped inserts with 2 R.H. and 2 L.H. cutting edges, for slotting cutters. Reduced and balanced cutting forces, low power consumption and heat generation and quite machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.030
