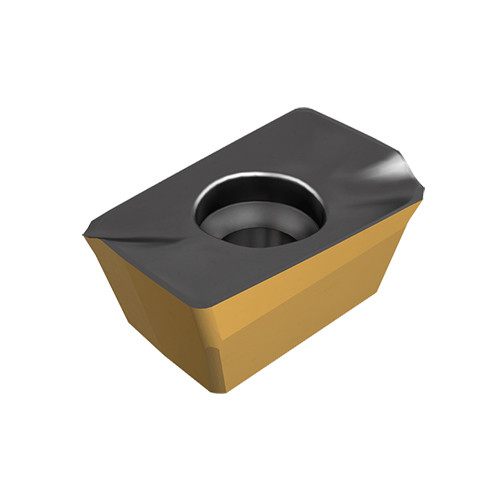

HM90 ADCT 1505PDR-PL IC808
Milling Insert; 0.637″ Length × 0.38″ Width × 0.23″ Thickness ; IC808 ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Cutting Edge Length (L) | 0.637″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.637″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |

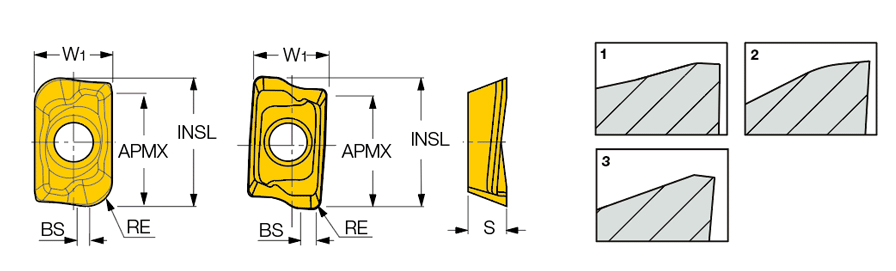

| Depth of Cut Maximum (APMX) | 0.472″ | Figure | 2 |
| Insert Width (W1) | 0.38″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.23″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.085″ | Cutting Edge Effective Length (LE) | 0.571″ |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |

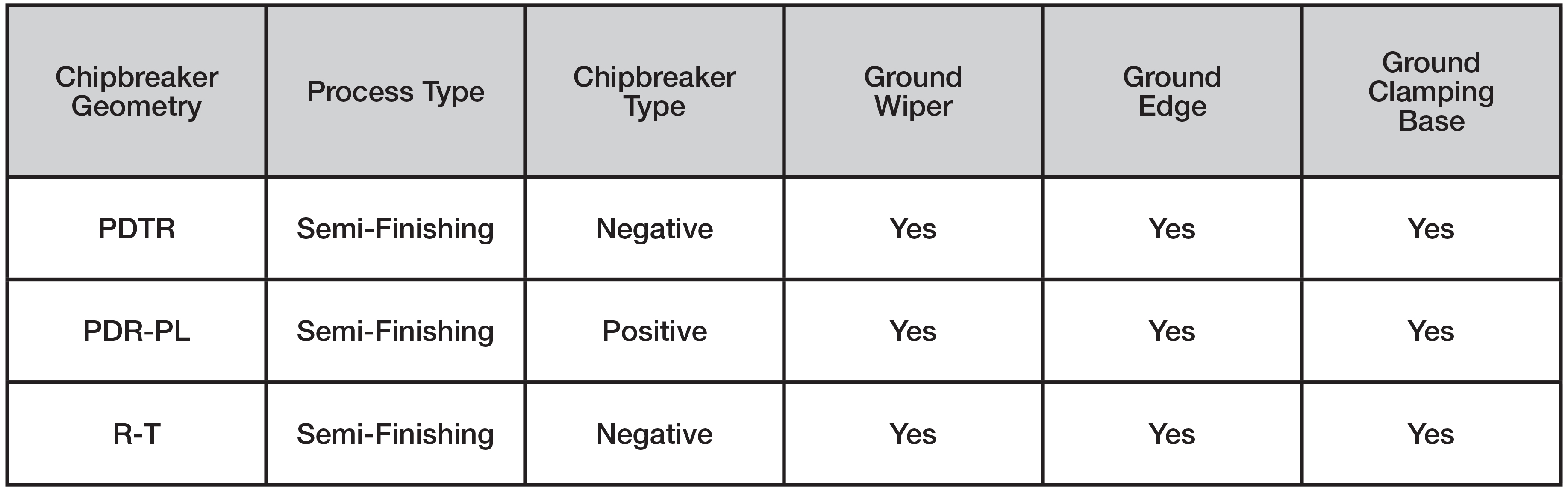

Product Features
| Family Description | HELI2000, Helical cutting edged, high 90° shoulder accuracy and surface quality inserts. Used for general use applications. | Country of Origin | Israel |
| Remarks | For inserts with corner radii larger than .079, the cutter body and seats should be modified Inserts with corner radii larger than .031 should be used on ADK & SM tools only on the face of the cutter. For a more economical insert refer to ADKT 1505PDR-HM in the ADKT 1505PDR family |
