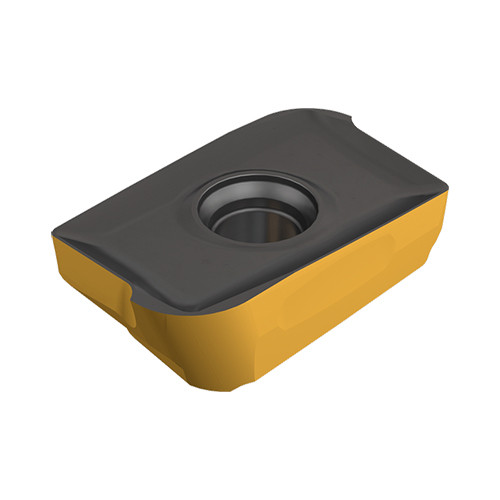

3M AXKT 200632R-PDR IC928
Milling Insert; 3MAXKT 200632R-PDR IC928 IC928 × 0.531″ Width × 0.254″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Counter Boring | Facing | Slanted Shoulder & Chamfer | | Shape | 85° Parallelogram |

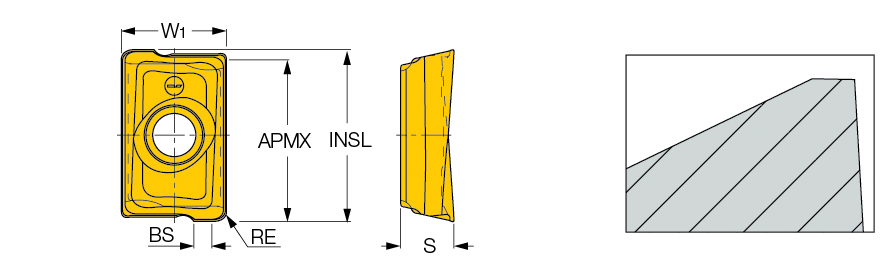

| Insert Length (INSL) | 0.866″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Corner Radius (RE) | 0.126″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.787″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.531″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.254″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.035″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | MILL2000 Inserts for heavy milling applications with a variety of corner radii. Heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enable a secure clamping and high durability in rough applications. | Country of Origin | Israel |
| Remarks | Reduce feed by 50% during engagement and exit from the workpiece. This practice will substantially increase insert life. Inserts with corner radii larger than .031 should be used on 3M SM-20 tools only on the face of the cutter. |
Shipping Info
Package Weight
0.045
