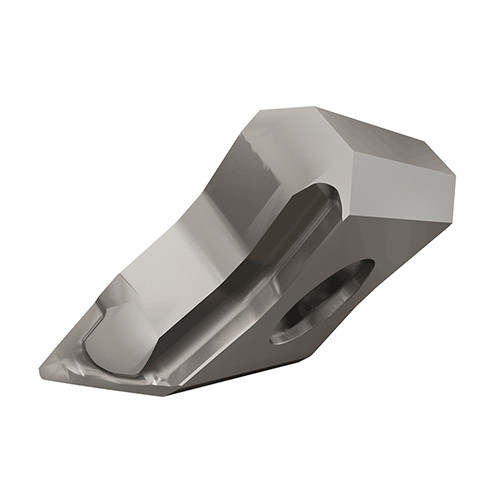

LNAT 1506AN-W IC910
Milling Insert; LNAT1506AN-W IC910 IC910 × 0.235″ Width × 0.508″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Shape | Rectangle |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |

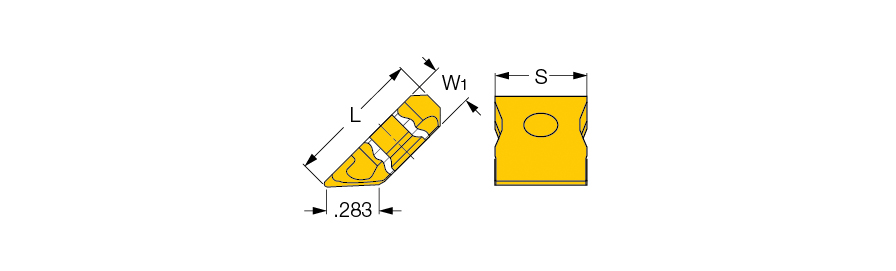

| Insert Length (INSL) | 0.761″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.235″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.508″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Wiper Edge Length (BS) | 0.283″ | Number of Cutting Edges | 2 |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | IC910 | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped wiper inserts. Designed for 45° lead angle on F45LN cutters. It has one right-hand and one left-hand wiper. When feed per revolution is less than .276″ use only one wiper insert. | Country of Origin | Israel |
| Remarks | The insert has one right- and one left-hand wiper When feed per revolution is less than .276, it is recommended to use only one wiper insert. When greater than .276, use two wiper inserts |
Shipping Info
Package Weight
0.039
