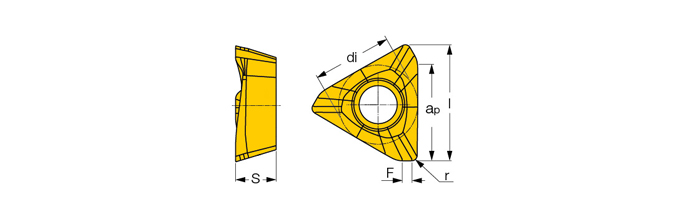

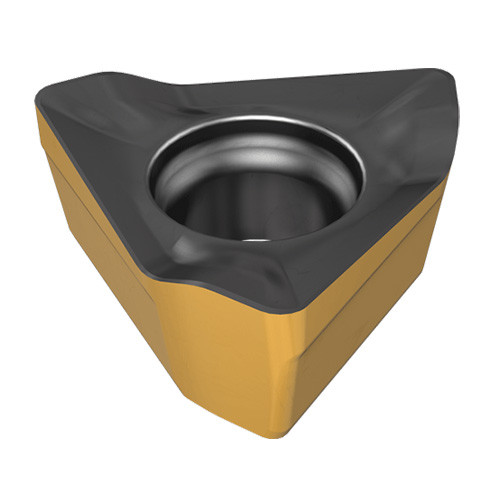

HM390 TCCT 0703PCR IC330
Milling Insert; HM390TCCT0703PCR IC330 IC330 × 0.124″ Thickness ; Carbide ; TiCN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC330 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shape | Triangle |
| Insert Length (INSL) | 0.307″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.228″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.124″ | Number of Cutting Edges | 3 |
| Wiper Edge Length (BS) | 0.031″ | Cutting Edge Effective Length (LE) | 0.197″ |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
Product Features
| Family Description | Triangular inserts with 3 helical cutting edges for 90° shoulder accuracy. For general use applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.005
