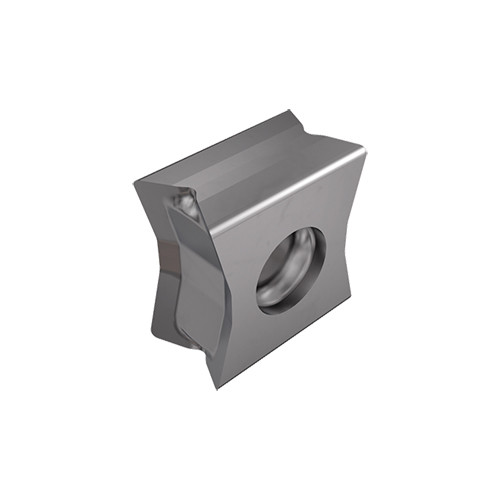

LNAR 1106 PN-N-P IC07
Milling Insert; LNAR1106PNNP IC07 IC07 × 0.236″ Width × 0.422″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Chamfering & Bottom Deburring | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

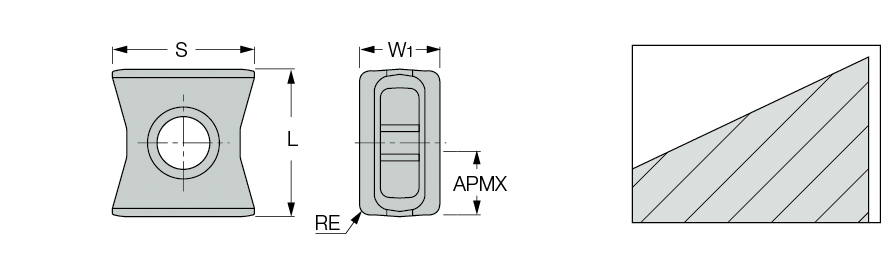

| Insert Length (INSL) | 0.439″ | Cutting Direction (HAND) | 4 Right + 4 Left |
| Corner Radius (RE) | 0.0197″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.422″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC07 |
Product Features
| Family Description | TANGMILL - Tangentially clamped inserts with positive polished rake. Recommended for machining high silicon, cast aluminum, titanium, nickel-based alloys and magnesium. | Country of Origin | Israel |
| Remarks | Polished rake and sharp cutting edge Recommended for machining high silicon and cast aluminum, titanium and magnesium 4 R.H. and 4 L.H. cutting edges |
Shipping Info
Package Weight
0.018
