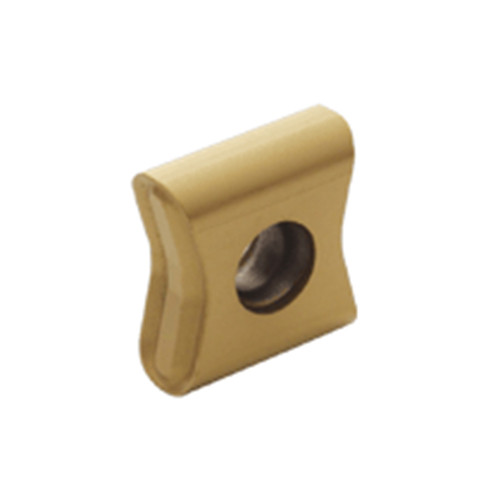

LNAT 150625PN-N MM IC928
Milling Insert; LNAT150625PN-N MMIC928 IC928 × 0.236″ Width × 0.546″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC928 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |

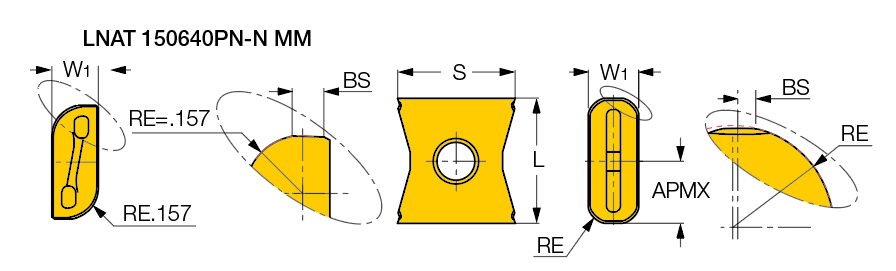

| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Corner Radius (RE) | 0.0984″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.2756″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.546″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.024″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Tangentially clamped precision ground inserts with various corner radii, used for corner rounding | Country of Origin | Israel |
Shipping Info
Package Weight
0.03
