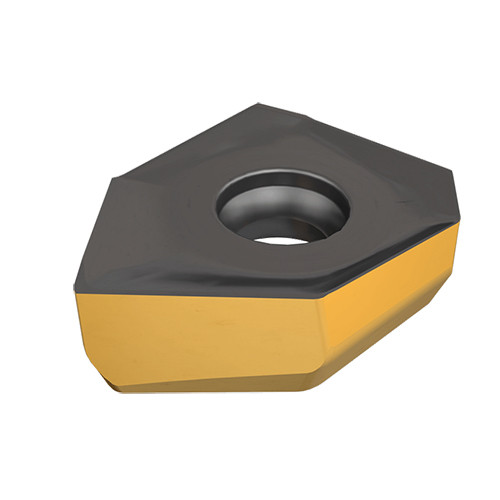

S845 SXHU 1606AD-R-W IC808
Milling Insert; S845SXHU1606AD-R-W IC808 IC808 × 0.254″ Thickness ; Carbide ; TiAlN+AlTiN+TiN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0138 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.118″ | Cutting Direction (HAND) | Right Hand |

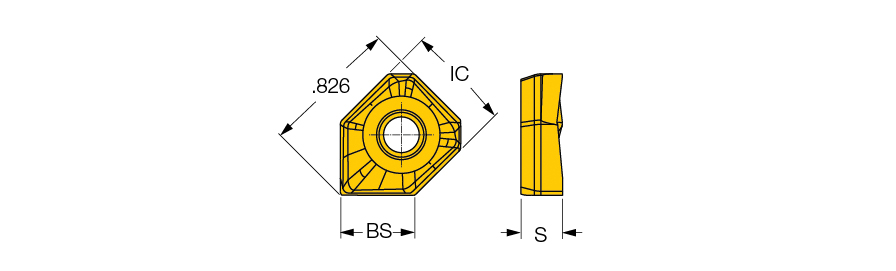

| Inscribed Circle Diameter (IC) | 0.638″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.254″ | Tool Type | Double sided Inserts |
| Wiper Edge Length (BS) | 0.394″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 1 |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Product Features
| Family Description | HELIDO wiper insert with a single cutting edge. | Country of Origin | Israel |
| Remarks | When a wiper insert is being used, recommended ap=.0315-.118 inch, fz=.0039-.0098 inch/t. |
Shipping Info
Package Weight
0.047
