HP ADCR 190604PDFR-P IC28

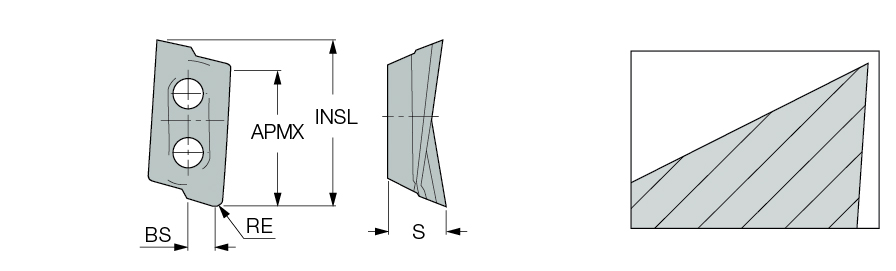

Milling Insert; HPADCR190604PDFR-P 28 IC28 × 0.291″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.886″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.768″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Thickness (S) | 0.291″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Wiper Edge Length (BS) | 0.138″ | Number of Cutting Edges | 2 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC28 | Body Material | Carbide |
Product Features
| Family Description | HELIPLUS milling inserts with .750″ cutting edge for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
