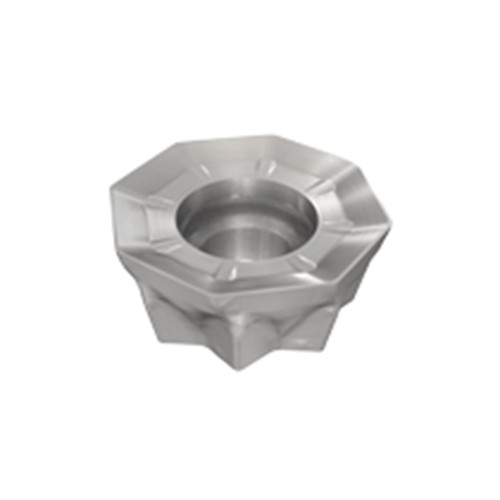

O45MT 050505-RM IC910
Milling Insert; O45MT050505-RM IC910 IC910 × 0.197″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Bottom Shouldering | Facing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | | Shape | 135° Octagon |

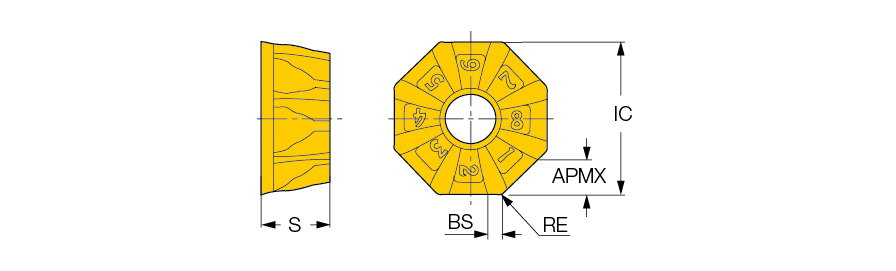

| Corner Radius (RE) | 0.0197″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.13″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.454″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.197″ | Minimum Feed per Tooth (fz(min)) | 0.0067 ″/tooth |
| Wiper Edge Length (BS) | 0.047″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | CHAMMILL octagonal indexable milling inserts for 45° facing. Part of the CHAMELEON multifunction line. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
