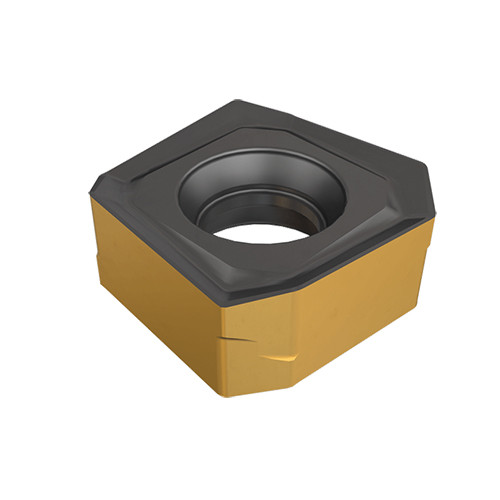

S845 SNMU 1305ANR-MM IC5400
Milling Insert; S845SNMU1305ANRMM 5400 IC5400 × 0.244″ Thickness ; Carbide ; TiCN+Al2O3+TiN
| Applicable Material | | Steel | Stainless Steel | | Grade | IC5400 |
| Application | | Facing | Fast Feed Milling | Slanted Shoulder & Chamfer | | Shape | Square |

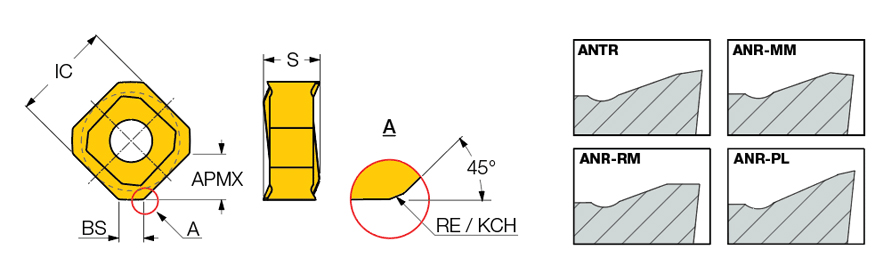

| Corner Radius (RE) | 0.0315″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.236″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.512″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.244″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Wiper Edge Length (BS) | 0.118″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided square inserts with 8 cutting edges (HELIDO 845 line). | Country of Origin | Israel |
| Remarks | S845 SNHU - Precision ground S845 SNMU - Utility |
Shipping Info
Package Weight
0.021
