LNKX 150608ANTN MM IC950

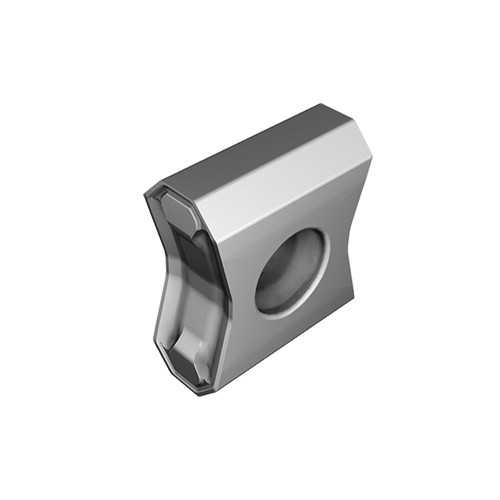

Milling Insert; LNKX150608ANTN MMIC950 IC950 × 0.236″ Width × 0.508″ Thickness ; Carbide

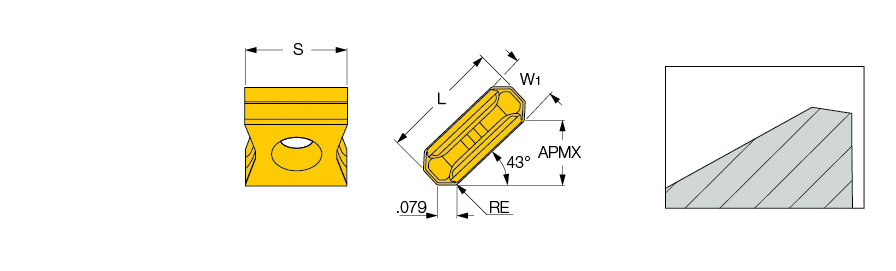

| Applicable Material | | Steel | Cast Iron | | Grade | IC950 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Rectangle |
| Insert Length (INSL) | 0.602″ | Maximum Feed per Tooth (fz(max)) | 0.0157 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.295″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0118 ″/tooth |
| Insert Thickness (S) | 0.508″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
Product Features
| Family Description | A tangentially clamped insert with a negative land, reinforced chipformer for unfavorable and high feed cutting conditions. | Country of Origin | Israel |
Shipping Info
Package Weight
0.026
