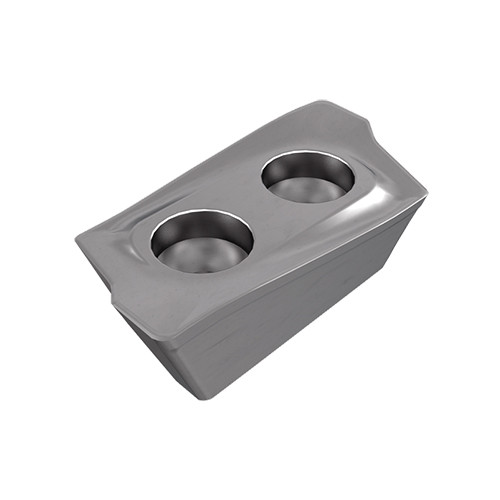

HP ADKT 2207PDTR IC908
Milling Insert; HPADKT2207PDTR IC908 IC908 × 0.295″ Thickness ; Carbide ; TiAlN

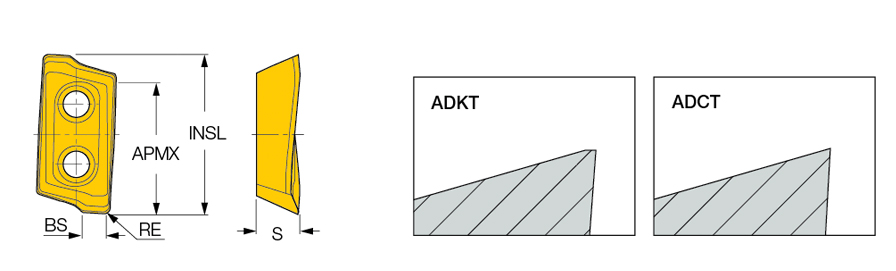

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 1.013″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.89″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.295″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.135″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | HELIPLUS inserts with two .866″ long cutting edges for general high shoulder milling. | Country of Origin | Israel |
Shipping Info
Package Length
1.00000
Package Width
.50000
Package Height
.30000
Package Weight
0.049
