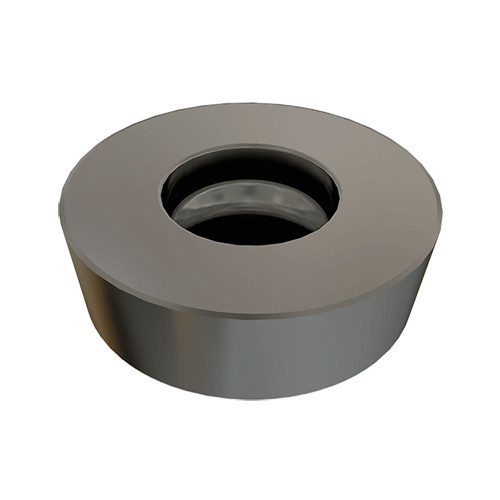

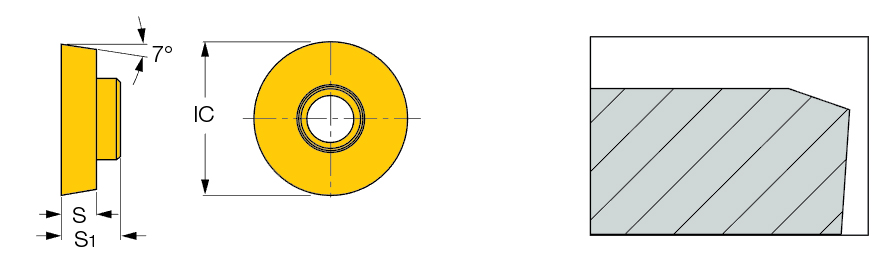

RCMW 1607MO IC908
Milling Insert; RCMW1607MO IC908 IC908 × 0.197″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0295 ″/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.315″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.63″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.197″ | Number of Cutting Edges | 8 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | Round, flat rake milling inserts with a bottom cylinder for improved clamping. | Country of Origin | Israel |
Shipping Info
Package Weight
0.032
