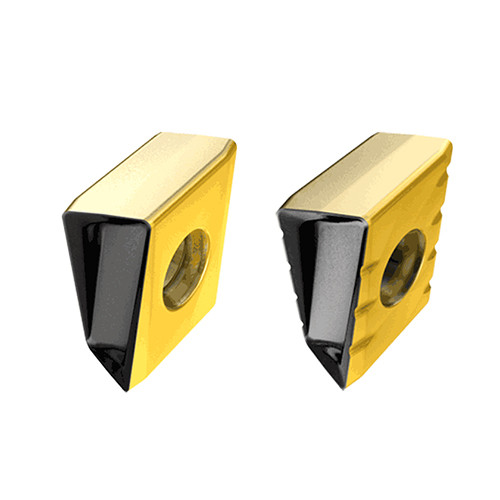

T490 LNHT 160716PNR IC830
Milling Insert; T490 LNHT 160716PNR IC830 IC830 × 0.276″ Width × 0.618″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Shouldering | Slotting | | Shape | Rectangle |

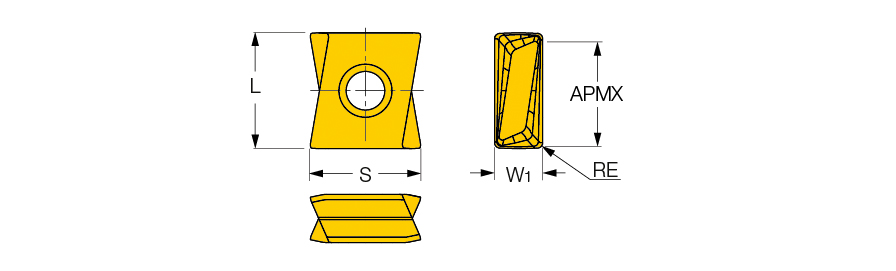

| Insert Length (INSL) | 0.671″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.063″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.276″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.618″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts |
Shipping Info
Package Weight
0.039
