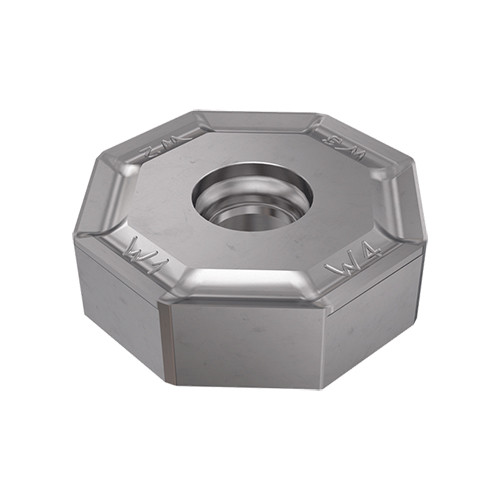

ONHU 0806AN-N-W IC4100
Milling Insert; ONHU0806ANNW IC4100 IC4100 × 0.236″ Thickness ; Carbide ; TiCN+Al2O3+TiN

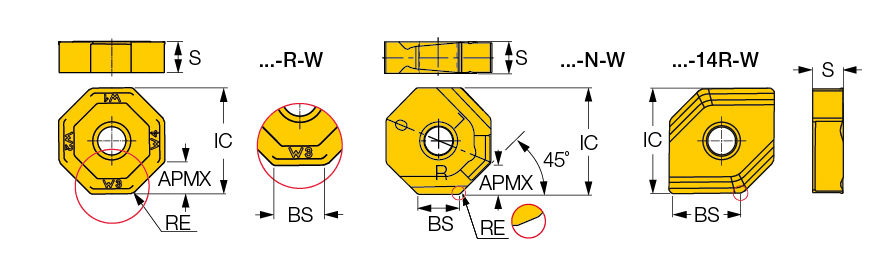

| Applicable Material | | Cast Iron | Hard Materials | | Shape | 135° Octagon |
| Application | | Facing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Direction (HAND) | 2 Right / 2 Left |
| Depth of Cut Maximum (APMX) | 0.138″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.799″ | Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Wiper Edge Length (BS) | 0.291″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC4100 |
Product Features
| Family Description | 16MILL, Octagonal wiper inserts. The ONHU 0806AN-N-W insert has 2 right-hand and 2 left-hand corners, the ONHU 0806AN-R-W insert has 4 right-hand corners. All are protruding by 0.05-0.07 mm provide excellent surface finish. | Country of Origin | Israel |
Shipping Info
Package Weight
0.069
