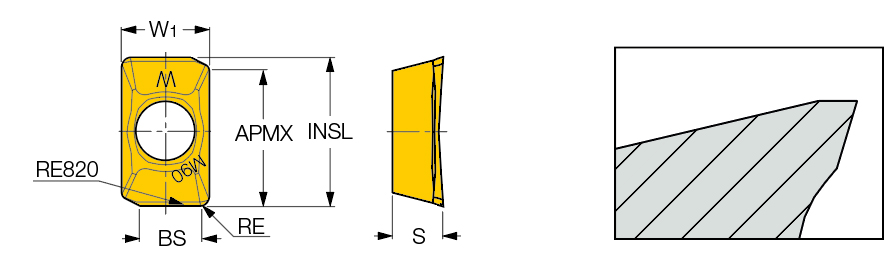

ADKT 1505PD-W IC328
Milling Insert; ADKT1505PD-W IC328 IC328 0.642″ Length × 0.377″ Width × 0.22″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC328 |
| Application | | Facing | Milling Inserts | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.642″ | Maximum Feed per Tooth (fz(max)) | 0.0118 ″/tooth |
| Insert Length (INSL) | 0.642″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.576″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Width (W1) | 0.377″ | Cutting Edge Effective Length (LE) | 0.576″ |
| Insert Thickness (S) | 0.22″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | Wiper HELIMILL insert for high surface finish. | Country of Origin | Israel |
| Remarks | Must be used together with ADKT 1505PDR inserts. |
Shipping Info
Package Weight
0.018
