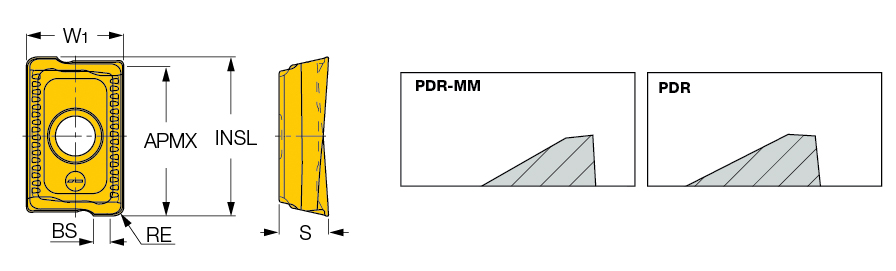

3MAXKT1304PDR IC4050
Milling Insert; 0.556″ Length × 0.331″ Width × 0.179″ Thickness ; IC4050 ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Grade | IC4050 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.556″ | Maximum Feed per Tooth (fz(max)) | 0.0138 inch/tooth |
| Corner Radius (RE) | 0.024″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.506″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.331″ | Minimum Feed per Tooth (fz(min)) | 0.0059 inch/tooth |
| Insert Thickness (S) | 0.179″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.083″ | Body Material | Carbide |
| Coating | TiCN |
Product Features
| Family Description | MILL2000 heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enables secure clamping and high durability in rough applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
