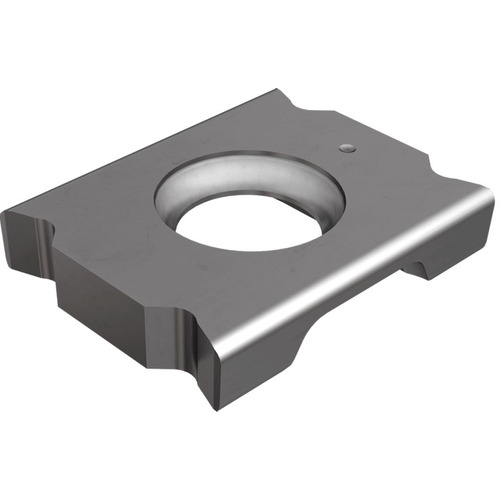

LNET 083504-TN-N IC928
Milling Insert; LNET083504-TN-N IC928 IC928 × 0.331″ Width × 0.27″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Shape | Rectangle |
| Application | | Side Slotting | Slitting | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |

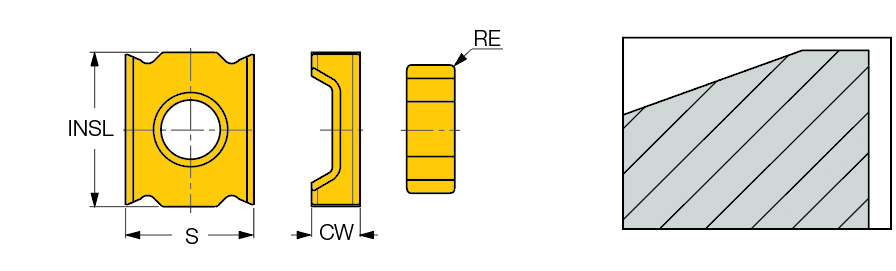

| Insert Length (INSL) | 0.331″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.331″ | Tool Type | Mill Tangential Inserts |
| Insert Thickness (S) | 0.27″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Number of Cutting Edges | 4 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
Product Features

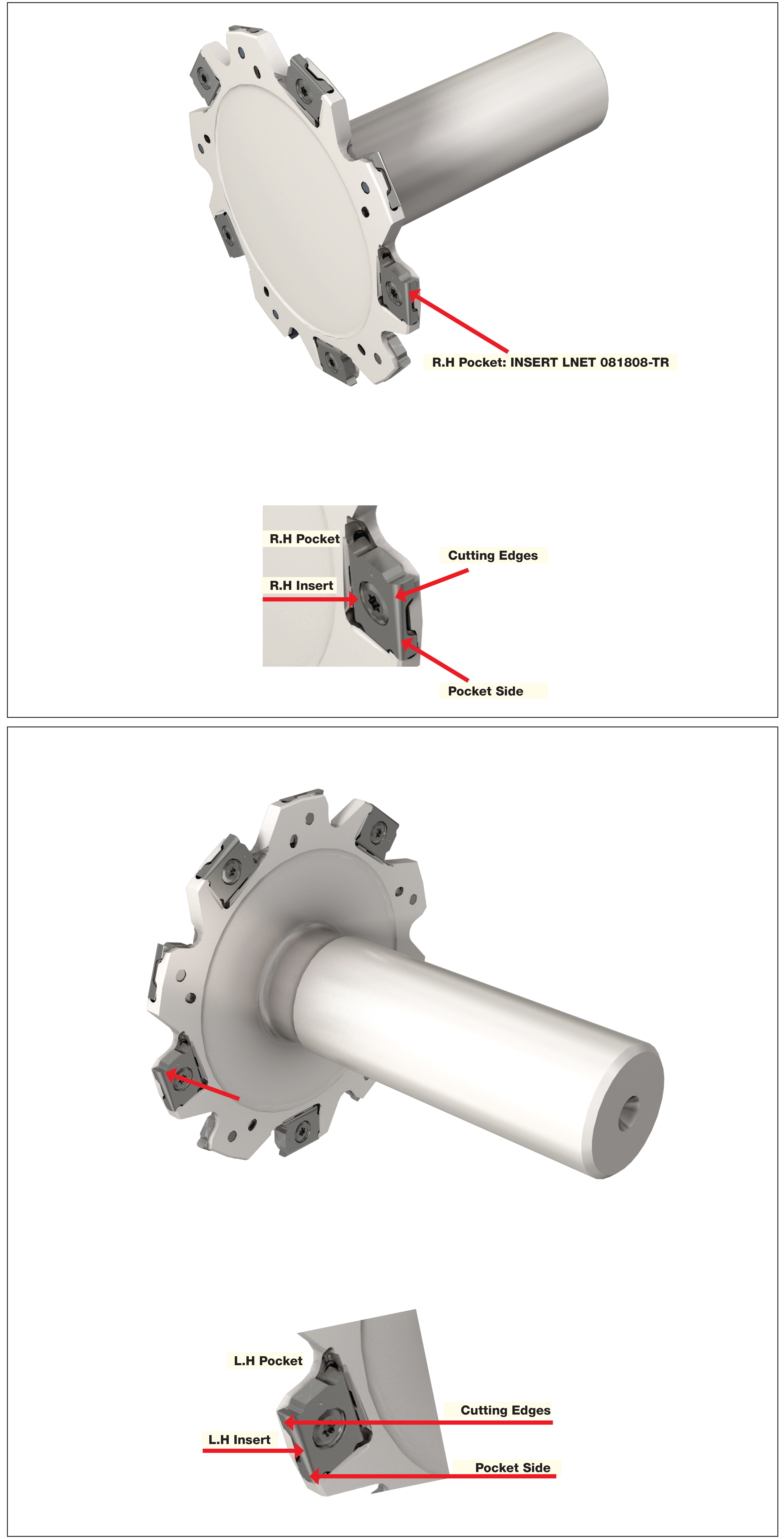

| Family Description | MINI-TANGSLOT Tangentially clamped inserts for slotting and precision grooving cutters. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
