S890 SNMU 1305PNTR IC808
Milling Insert; S890SNMU1305PNTR IC808 IC808 × 0.22″ Thickness ; Carbide ; TiAlN+AlTiN+TiN

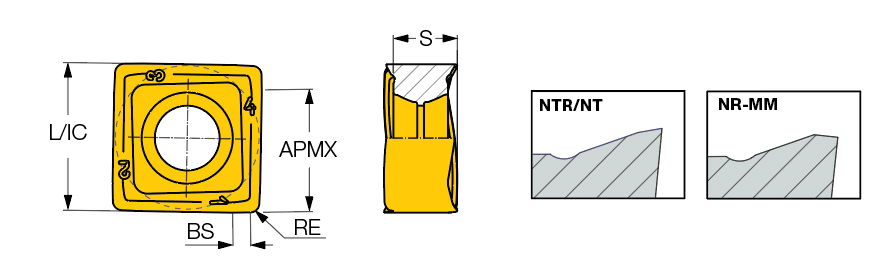

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Square |
| Application | | Facing | Shouldering | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.512″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.512″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.22″ | Number of Cutting Edges | 8 |
| Wiper Edge Length (BS) | 0.071″ | Cutting Edge Effective Length (LE) | 0.354″ |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Inch |
| Grade | IC808 | Body Material | Carbide |
Product Features

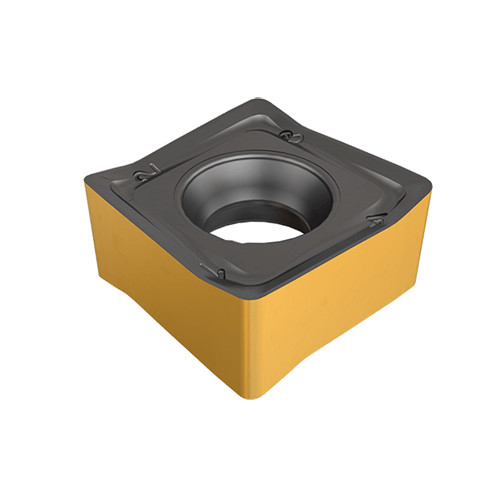

| Family Description | Double-sided square inserts with 8 cutting edges. Used on 88° face mills (HELIDO 890 line). | Country of Origin | Israel |
Shipping Info
Package Weight
0.025
