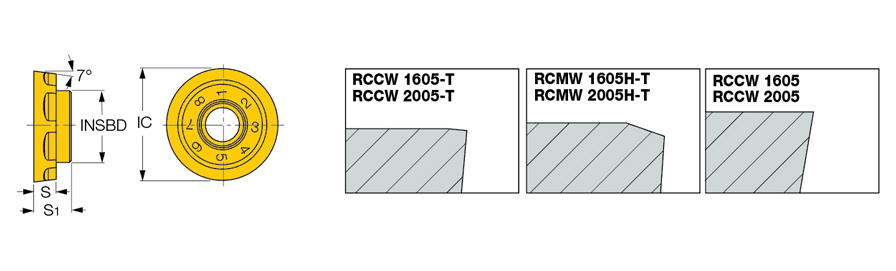

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Insert Body Diameter (INSBD) | 0.472″ |
| Application | | Facing | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 0.0276 ″/tooth |
| Corner Radius (RE) | 0.3937″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.787″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.217″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Coating | TiAlN | Number of Cutting Edges | 8 |
| Grade | IC928 | Measurement Type | Inch |
| Shape | Round | Body Material | Carbide |

Product Features

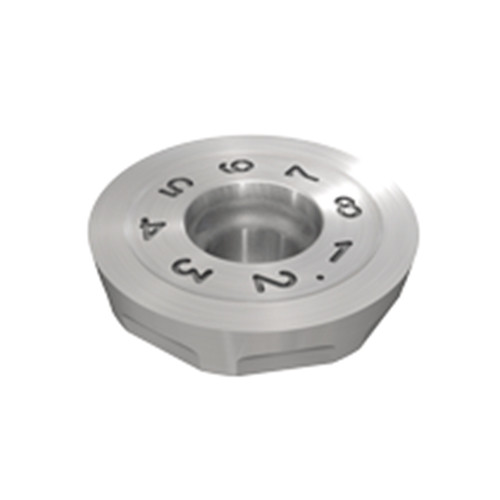

| Family Description | Round milling inserts with a mounting bottom cylinder and 8 indexing cavities on the insert flank. Used for roughing and finishing applications in the die & mold industry on alloyed and stainless steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.057
