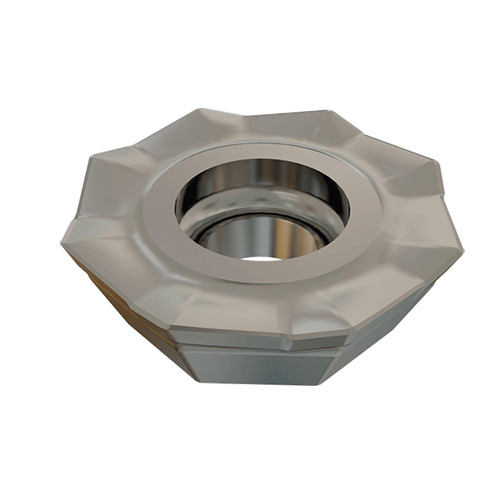

OEMT 060405AER-76 IC328
Milling Insert; OEMT060405AER76 IC328 IC328 × 0.187″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |

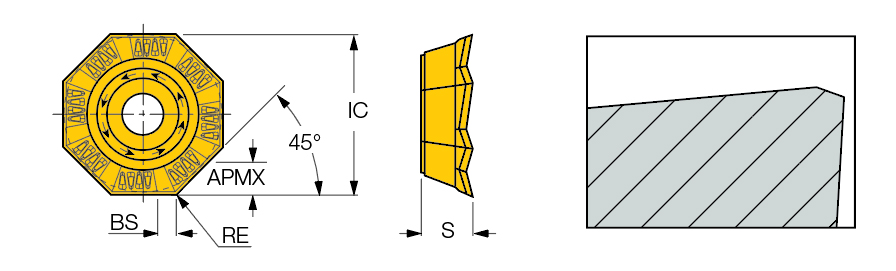

| Corner Radius (RE) | 0.0197″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.098″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.562″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.187″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Wiper Edge Length (BS) | 0.063″ | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts for general use. | Country of Origin | Israel |
Shipping Info
Package Length
.54600
Package Width
.56000
Package Height
.18000
Package Weight
0.016
