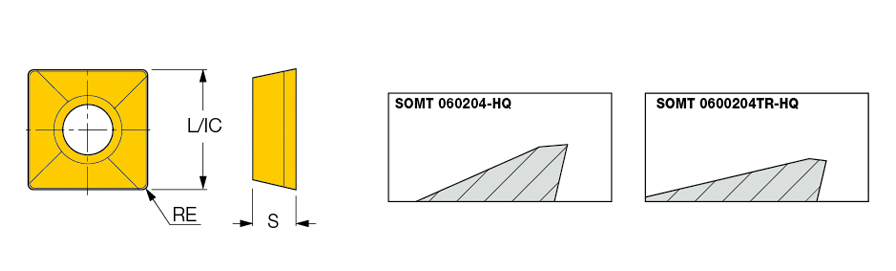

SOMT 060204TR-HQ
Milling Insert; 0.243″ Length × 0.101″ Thickness ; IC635 ; Carbide ; TiN|TiC|TiN
| Applicable Material | Steel|Stainless Steel | Shape | Square |
| Application | | Facing | Milling Inserts | Profiling | | Maximum Feed per Tooth (fz(max)) | 0.0047 inch/tooth |
| Cutting Edge Length (L) | 0.243″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.016″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.101″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Coating | TiN|TiC|TiN | Measurement Type | Metric |
| Grade | IC635 | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD square milling inserts for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
