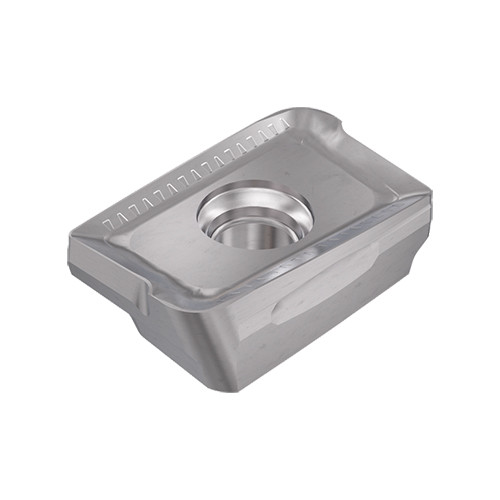

3M AXKT 1304PDR-MM IC908
Milling Insert; 0.556″ Length × 0.331″ Width × 0.179″ Thickness ; IC908 ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0087 ″/tooth |
| Cutting Edge Length (L) | 0.556″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.556″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0236″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.331″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.179″ | Cutting Edge Effective Length (LE) | 0.506″ |
| Wiper Edge Length (BS) | 0.083″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | MILL2000 heavy duty design: dovetail section shape, helical cutting edge and positive rake angle. Enables secure clamping and high durability in rough applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.012
