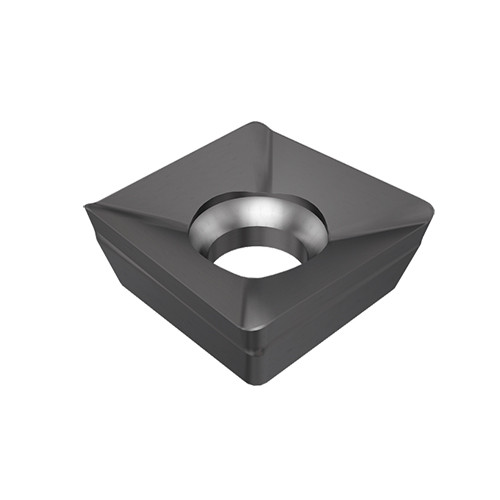

SOMT 060204TR-HQ IC30N
Milling Insert; SOMT060204TRHQ IC30N IC30N × 0.101″ Thickness ; Cermet ; Uncoated
| Applicable Material | | Steel | Stainless Steel | Hard Materials | | Grade | IC30N |
| Application | | Chamfering & Bottom Deburring | Counter Boring | Countersinking | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Shape | Square |
| Insert Length (INSL) | 0.243″ | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Cermet |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.243″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.101″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | HELIQUAD square milling inserts for general use. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
