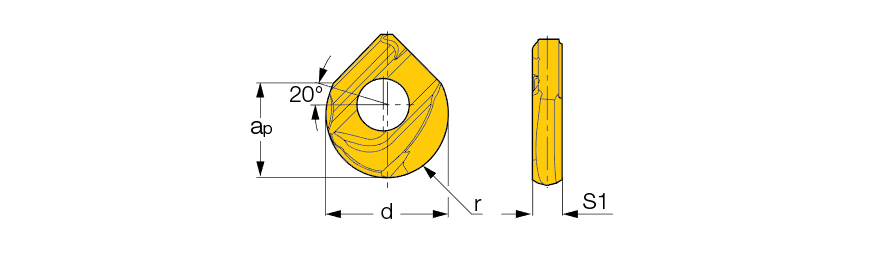

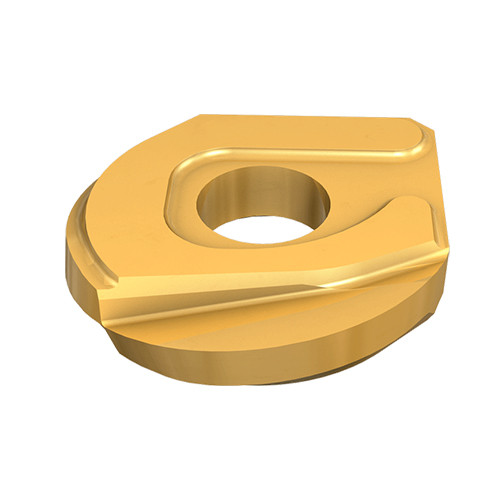

HBF D.50-QF IC908
Milling Insert; HBFD.50-QF IC908 IC908 × 0.102″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Application | | Profiling | Rampdown | Undercutting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1/4″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 1/3″ | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Insert Thickness (S) | 0.102″ | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for high-quality finishing profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0002″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
