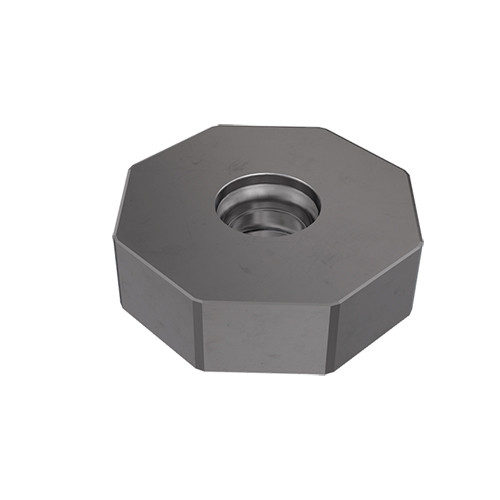

ONHQ 0806-TN IS8
Milling Insert; ONHQ0806-TN IS8 IS8 × 0.236″ Thickness ; Ceramic ; Uncoated

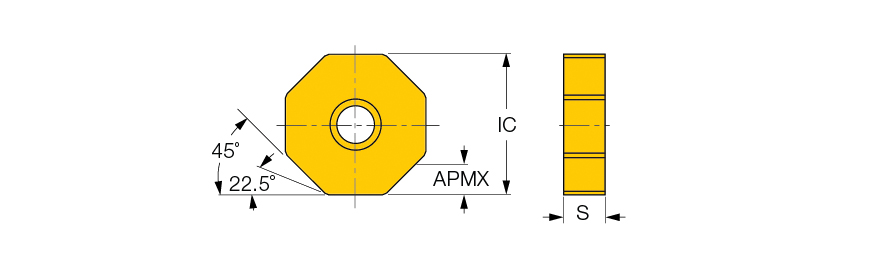

| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Grade | IS8 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | 135° Octagon |
| Depth of Cut Maximum (APMX) | 0.217″ | Cutting Edge Material | Ceramic |
| Inscribed Circle Diameter (IC) | 0.795″ | Tool Type | Mill Ultra hard Inserts |
| Insert Thickness (S) | 0.236″ | Number of Cutting Edges | 16 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Octagonal double-sided ceramic face milling inserts. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.019
