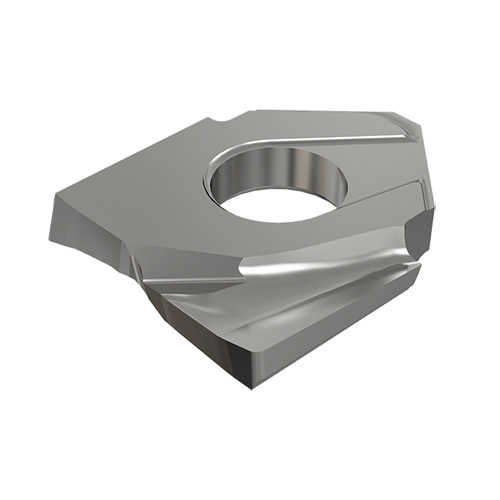

HCC D.50-R.015-QF IC908
Milling Insert; HCCD.50-R.015-QF IC908 IC908 × 1/2″ Width × 0.102″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 120° Hexagon |
| Application | | Counter Boring | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.015″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.319″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.102″ | Cutting Edge Effective Length (LE) | 0.319″ |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | 2 cutting edges (fully effective) inserts for shouldering, slotting, drilling and countersinking applications. Accuracy is within .0004″. Used for roughing and semi-finishing applications. Part of the BALLPLUS multifunction milling system. | Country of Origin | Israel |
Shipping Info
Package Weight
0.011
