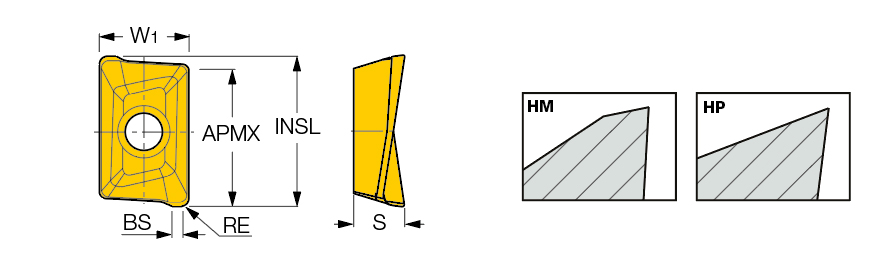

APKR 1003PDR-HM
Milling Insert; 0.441″ Length × 0.264″ Width × 0.148″ Thickness ; IC250 ; Carbide ; TiCN|TiN
| Applicable Material | Steel|Stainless Steel | Grade | IC250 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.441″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 0.02″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.406″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 0.264″ | Minimum Feed per Tooth (fz(min)) | 0.0027 inch/tooth |
| Insert Thickness (S) | 0.148″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
| Coating | TiCN|TiN |
Product Features
| Family Description | HELIMILL, super positive inserts, used for machining aluminum, stainless steel and high temperature alloys. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
