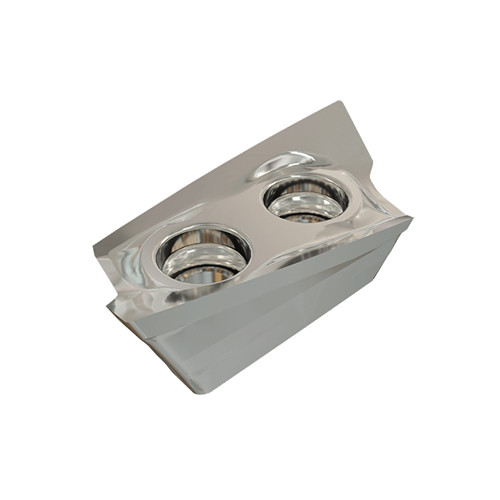

HP ADCR 220704PDFR-P LM IC28
Milling Insert; HPADCR220704PDFRP LM28 IC28 × 0.296″ Thickness ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shape | 85° Parallelogram |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |

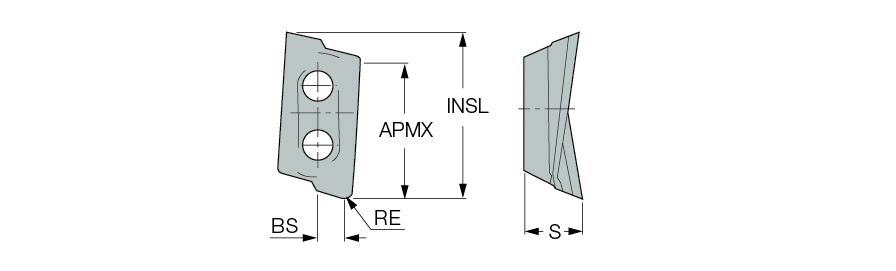

| Insert Length (INSL) | 1.029″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.866″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.296″ | Number of Cutting Edges | 2 |
| Wiper Edge Length (BS) | 0.15″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 |
Product Features
| Family Description | HELIPLUS milling inserts with a very positive and polished rake for machining aluminum. | Country of Origin | Israel |
| Remarks | LM insert provides high 90° shoulder accuracy, especially when using the 1.26-1.97 cutters |
Shipping Info
Package Length
1.00000
Package Width
.49000
Package Height
.30000
Package Weight
0.041
