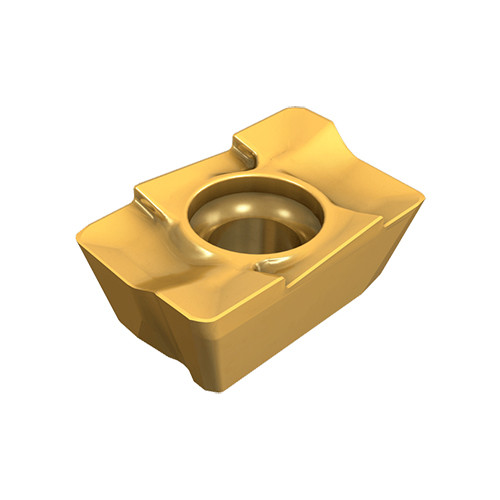

ADMT 1505PDR-HS IC950
Milling Insert; 0.624″ Length × 0.378″ Width × 0.233″ Thickness ; IC950 ; Carbide
| Applicable Material | | Steel | Cast Iron | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Facing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |

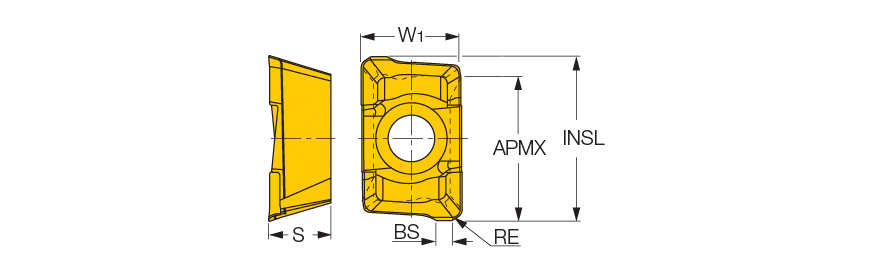

| Cutting Edge Length (L) | 0.624″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.624″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Width (W1) | 0.378″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.233″ | Cutting Edge Effective Length (LE) | 0.551″ |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | HELIMILL inserts with a serrated cutting edge for chip splitting, for roughing applications. Use for long overhang and extended flute cutters with reduced chatter. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
