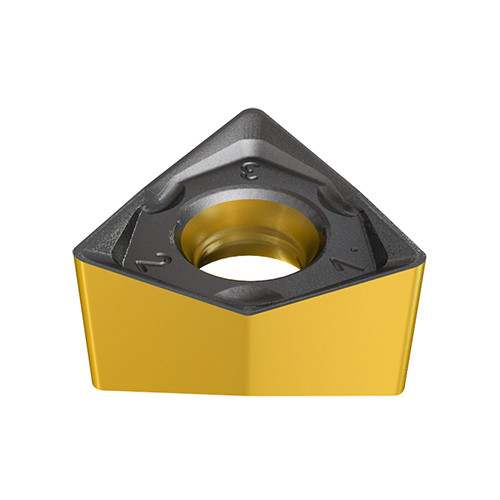

H690 WNMU 0705PNR-MM IC830
Milling Insert; H690WNMU0705PNR-MM 830 IC830 × 0.232″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Shape | 80° Trigon |

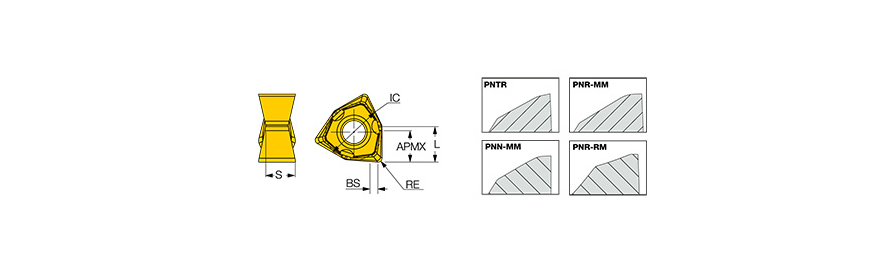

| Insert Length (INSL) | 0.287″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.453″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.232″ | Number of Cutting Edges | 6 |
| Wiper Edge Length (BS) | 0.047″ | Cutting Edge Effective Length (LE) | 0.276″ |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Trigonal inserts with 6 helical cutting edges for 90° shoulder milling | Country of Origin | Israel |
Shipping Info
Package Weight
0.016
