ADKT 1505PDTR-76

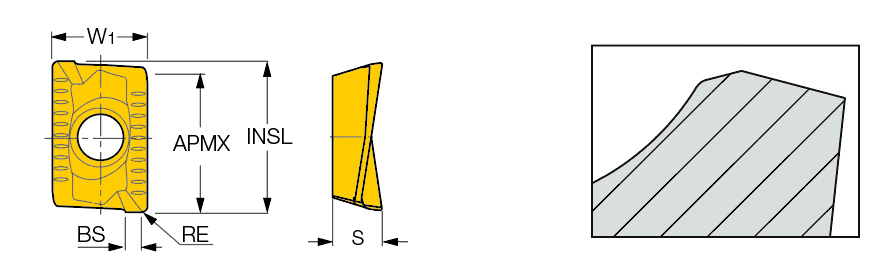

Milling Insert; 0.62″ Length × 0.376″ Width × 0.222″ Thickness ; IC250 ; Carbide ; TiCN|TiN
| Applicable Material | Steel|Stainless Steel | Grade | IC250 |
| Application | | Facing | Milling Inserts | Profiling | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.62″ | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Corner Radius (RE) | 0.039″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.547″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.376″ | Minimum Feed per Tooth (fz(min)) | 0.0031 inch/tooth |
| Insert Thickness (S) | 0.222″ | Measurement Type | Metric |
| Wiper Edge Length (BS) | 0.063″ | Body Material | Carbide |
| Coating | TiCN|TiN |
Product Features
| Family Description | HELIMILL general use milling insert with reinforced helical cutting edges and ribs on the rake face to reduce heat transfer. Used for interrupted cuts and heavy machining. | Country of Origin | Israel |
Shipping Info
Package Weight
0.015
