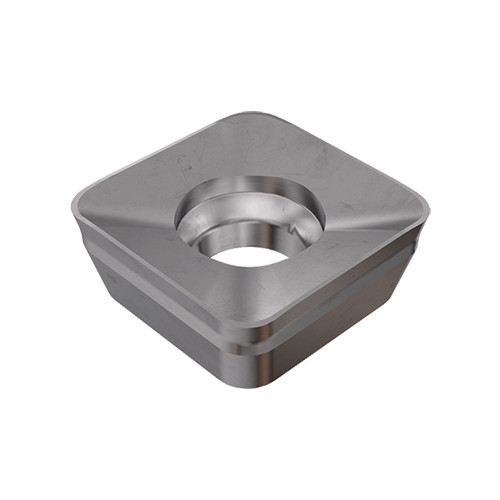

QOMT 060208TN-HQ IC328
Milling Insert; QOMT060208TNHQ IC328 IC328 × 0.101″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC328 |
| Application | | Bottom Shouldering | Chamfering & Bottom Deburring | Countersinking | Drill Mill | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Shape | Square |

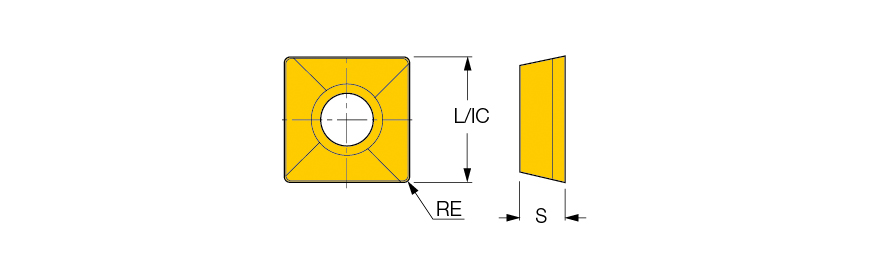

| Insert Length (INSL) | 0.243″ | Maximum Feed per Tooth (fz(max)) | 0.0047 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.243″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.101″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Product Features
| Family Description | QUAD2000 insert with 4 right- or left-hand cutting edges for general use. | Country of Origin | Israel |
Shipping Info
Package Length
.24000
Package Width
.24000
Package Height
.10000
Package Weight
0.12
