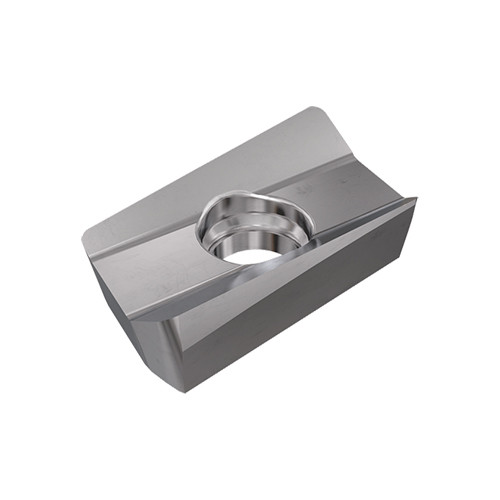

HP ANCR 070204PNFR-P IC28
Milling Insert; 0.343″ Length × 0.177″ Width × 0.102″ Thickness ; IC28 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC28 |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Shape | 85° Parallelogram |

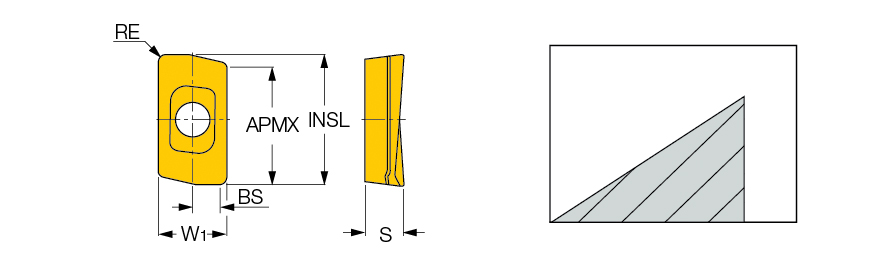

| Cutting Edge Length (L) | 0.343″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Insert Length (INSL) | 0.343″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.303″ | Minimum Feed per Tooth (fz(min)) | 0.0027 ″/tooth |
| Insert Width (W1) | 0.177″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.102″ | Cutting Edge Effective Length (LE) | 0.303″ |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Peripherally ground Inserts with a super positive chipformer for machining aluminum, titanium and magnesium (P - polished rake). | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
