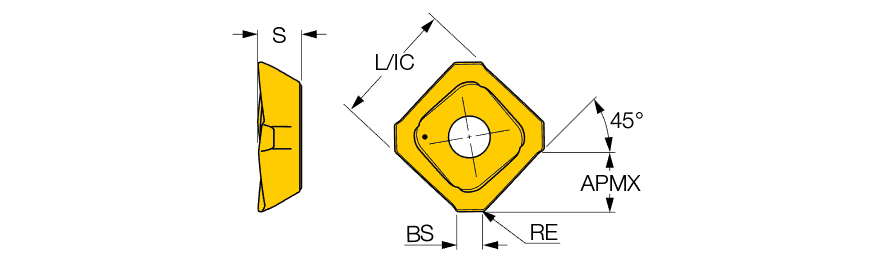

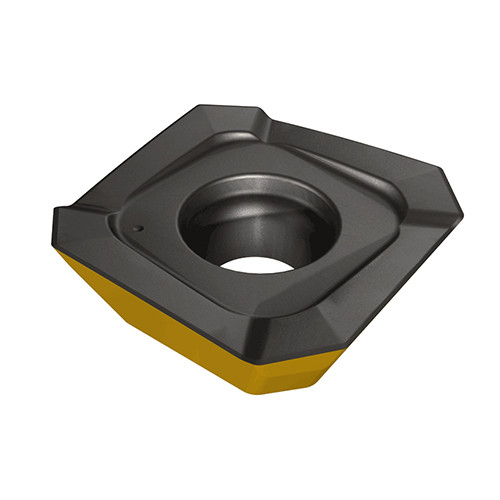

SEMT 140405ATR IC830
Milling Insert; SEMT140405ATR IC830 IC830 × 0.195″ Thickness ; Carbide ; TiAlN+TiN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | IC830 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Square |
| Insert Length (INSL) | 0.559″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0197″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.217″ | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 0.559″ | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.195″ | Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Wiper Edge Length (BS) | 0.108″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiN | Body Material | Carbide |
Product Features
| Family Description | Positive square inserts for general soft and clean cutting. | Country of Origin | Israel |
| Remarks | SECT - Precision ground insert SEMT - Utility insert |
Shipping Info
Package Weight
0.020
