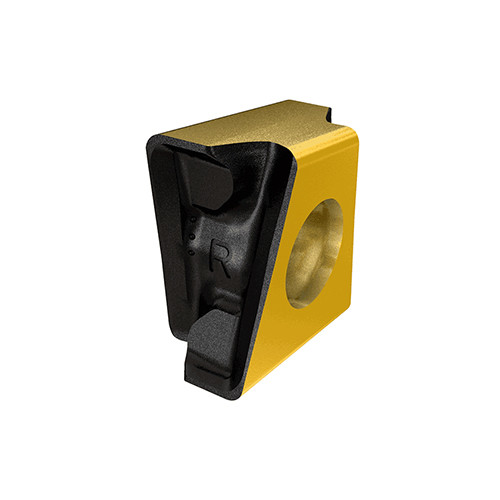

LNHT 1106PN-N HT IC910
Milling Insert; LNHT1106PNNHT IC910 IC910 × 0.235″ Width × 0.433″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | | Shape | Rectangle |

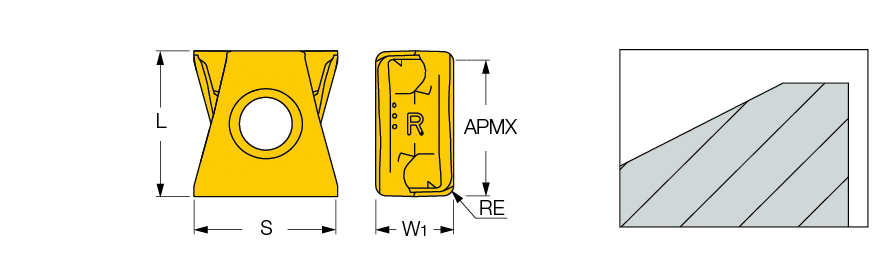

| Insert Length (INSL) | 0.439″ | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.394″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.235″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.433″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | TANGMILL - Tangentially clamped inserts with straight, right-hand and left-hand cutting edges. | Country of Origin | Israel |
| Remarks | For mismatch as a function of cutting diameter, click on More Info |
Shipping Info
Package Weight
0.016
