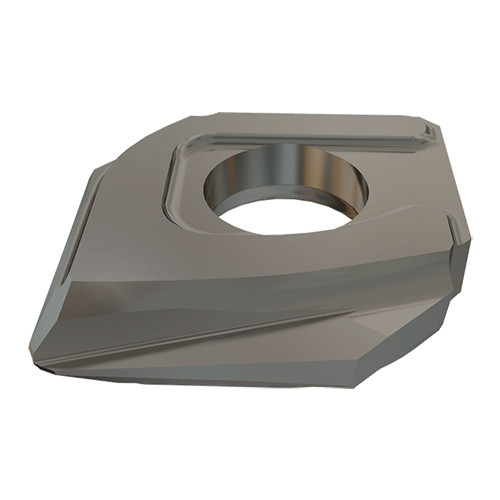

HCD D205-090-QF IC908
Milling Insert; 0.61″ Length × 0.807″ Width × 0.183″ Thickness ; IC908 ; Carbide ; TiAlN

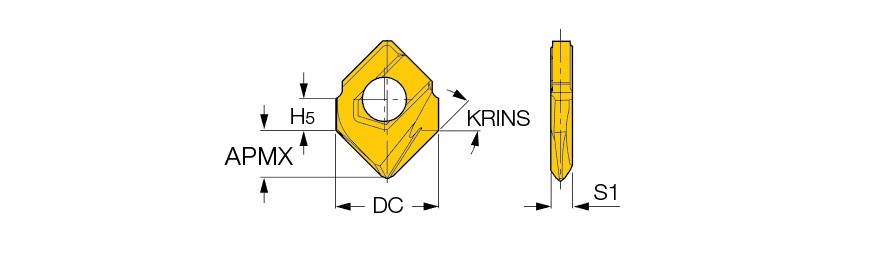

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | 120° Hexagon |
| Application | | Countersinking | Drill Mill | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Cutting Edge Length (L) | 0.61″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.61″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.374″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.807″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.183″ | Number of Cutting Edges | 2 |
| Insert Included Angle (EPSR) | 45 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 |
Product Features
| Family Description | 2 cutting edges (fully effective) 90° V-shaped insert for chamfering countersinking and spot drilling. Part of the BALLPLUS multifunction milling system. | Country of Origin | Israel |
Shipping Info
Package Length
5.13000
Package Width
2.50000
Package Height
.17000
Package Weight
0.041
