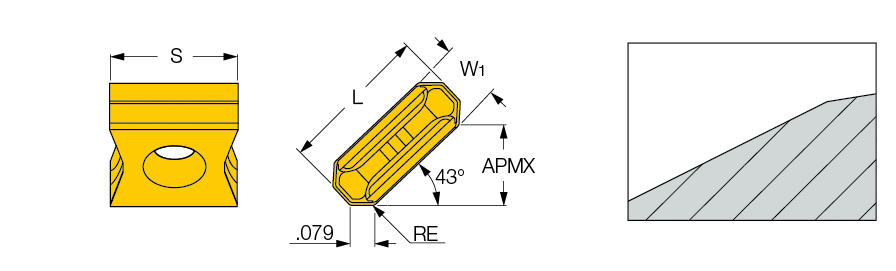

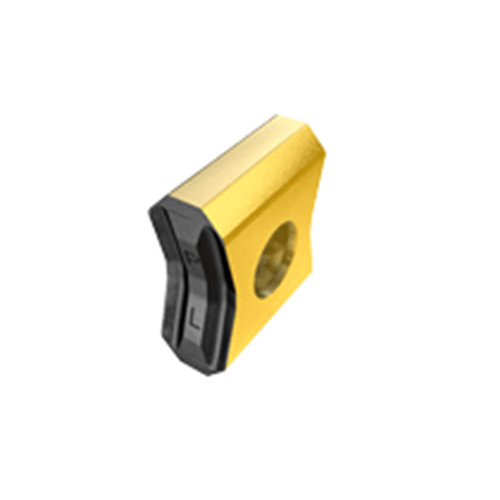

LNKX 150608AN-N PL IC4100
| Applicable Material | | Cast Iron | Hard Materials | | Grade | IC4100 |
| Application | | Facing | Slanted Shoulder & Chamfer | | Shape | Rectangle |
| Insert Length (INSL) | 0.602″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.295″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.508″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
Product Features
| Family Description | TANGMILL tangentially clamped inserts with a positive rake angle, leaves sharp edges without chipping on cast iron components. High shear rake for light machining of steel, stainless steel and cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
