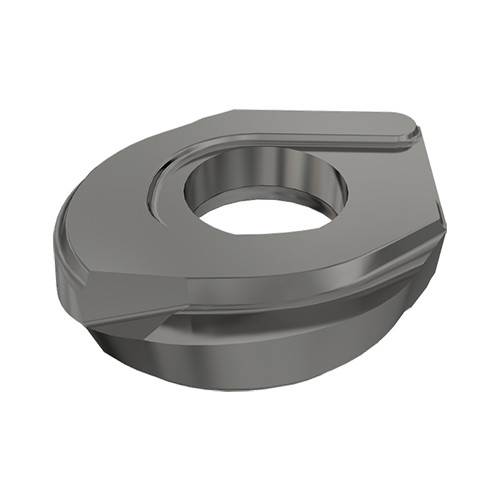

HBR D.62-QF IC328
Milling Insert; HBRD.62QF IC328 IC328 × 0.133″ Thickness ; Carbide ; TiCN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Application | | Helical Interpolation | Profiling | Rampdown | Undercutting | | Cutting Edge Material | Carbide |

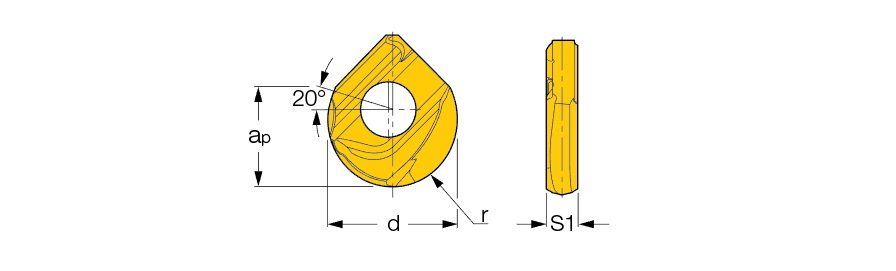

| Corner Radius (RE) | 0.312″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.42″ | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Insert Thickness (S) | 0.133″ | Number of Cutting Edges | 2 |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | Round |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for profiling, up and down ramping, steep profiles and undercutting. Accuracy is within .0004″. May be used for roughing or finishing applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.018
