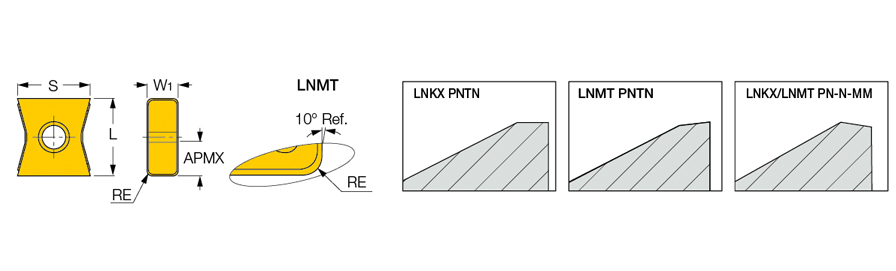

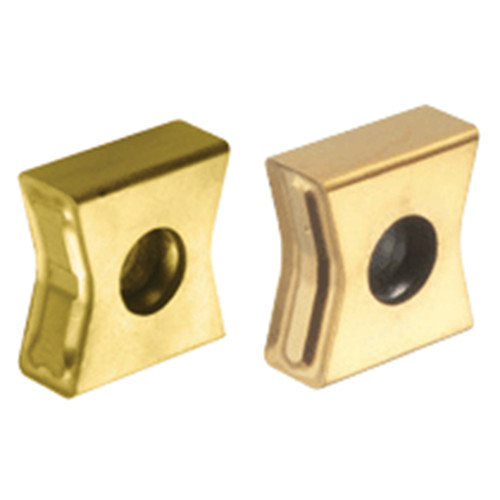

LNKX 150612-PNTN IC910
Milling Insert; LNKX150612PNTN IC910 × 0.236″ Width × 0.546″ Thickness ; Carbide ; AlTiN
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | | Shape | Rectangle |
| Insert Length (INSL) | 0.591″ | Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.276″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.546″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Product Features
| Family Description | Tangentially clamped insert with 4 L.H. and 4 R.H. cutting edges. Reinforced negative land for unfavorable conditions. Enables high feed rates on grey and nodular cast iron. | Country of Origin | Israel |
Shipping Info
Package Weight
0.033
